LUCID OPTICS L5 Rifle Scope

As shooters, we expect some very specific things from our gear. Knowing how we use our gear drives the expectations and sets the stage for the design of the product. The L5 series of rifle scopes was intentionally over built and designed to offer features and performance that is not found anywhere else at this price point. We approached this product development seeking candid and detailed feedback from operators, law enforcement and military professionals as well as competitive and recreational shooters. We took all of the requests and balanced them out in a long list of our own development priorities.

The result was a purpose built optic in a stout 30mm one piece aluminum frame with all of the durability and quality that LUCID OPTICS has become known for. It also has a level of operator benefits and creature comforts that simply are not found anywhere else.

L5 Rifle scopes offer precise and repeatable 1/8 MOA windage and elevation adjustments on lockable and re-zeroable, tactical style turrets. The side parallax adjustment combined with the ocular diopter adjustment provides a crisp target image over the entire magnification range. The L5 Reticle is a precise MOA measuring device with 2 MOA increments below the rifle's zero and meaningful windage values built in.

With the 4-16x44 "Cross Over" rifle scope, LUCID OPTICS is providing a quality solution for the hunter. This optic has all of the same overbuilt developments and precision qualities as the bigger brother, but is offered in a magnification range that is more suitable for the hunter.

Purchase
LUCID OPTICS L5 Rifle Scope
MSRP: $519.99

Purchase
LUCID OPTICS L5 Rifle Scope
MSRP: $469.99

Construction Magnification
Objective Lens
Ocular Lens Diameter
Length
Mounting Length
Weight
Tube Diameter
Construction Material
Color & Finish
6x-24x
50mm
34mm
15.25"
5.5"
24.5oz
30mm
One Piece Aluminum (6063)
MATTE BLACK
4x-16x
44mm
34mm
13.25"
5.5"
18oz
30mm
One Piece Aluminum (6063)
MATTE BLACK
Performance

Waterproof
Fogproof
Shockproof
Lens Coating
Light Transmission
Ocular Focus
Parallax Adjustment
Parallax Adjustment Range
Eye Relief
Exit Pupil
Field of View
Diopter Compensation

YES (submersible)
YES (Nitrogen Purged)
YES (.338 Lapua)
FBMC Multi Coated
92%
YES
YES (side)
15yrds -- ∞
4.25" to 3.25"
8.3mm to 2mm
16.5ft to 4.3ft
(-2 to +1.5)
YES (submersible)
YES (Nitrogen Purged)
YES (.338 Lapua)
FBMC Multi Coated
92%
YES
YES (side)
15yrds -- ∞
4.25" to 3.25"
8.3mm to 2mm
16.5ft to 4.3ft
(-2 to +1.5)
Function Reticle Type
Turret Click Value
Windage Adj, Range
Elevation Adj. Range
Lockable Turrets
Re-Zeroable Turrets
Warranty
L5 Etched Glass
1/8MOA
50MOA
50MOA
YES
YES
Limited Lifetime
L5 Etched Glass
1/8MOA
50MOA
50MOA
YES
YES
Limited Lifetime

Make Longer Shots Possible

EXAMPLE:
• 6.5x284NORMA
• B.C. : G2 .618
• Temp. 50˚
• Zero: 100yds
• Muzzle Vel: 2850fps
• 140g Berger
• Altitude: 5000ft

With the L5 reticle set in a crystal clear and precise LUCID OPTIC, the operator no longer needs to be unsure of their shot placement over distance. The L5 reticle is a simple MOA measuring tape with useful hold over increments set 2 MOA apart. The L5 also provides meaningful wind estimation dots to reference while shooting in less than optimal conditions. With the immensely useful addition of having the reticle available in STRELOK, the operator now can have exact ballistic data no matter what magnification the optic is set on.

The L5 reticle is set in the Second Focal plane. This is done intentionally to allow the operator to be able to back off the magnification and gain substantially more distance in target striking capability. By backing off the magnification, this changes the field of view and increases the “Hold Over” distances available to the operator in the field of view with meaningful and precise reticle increments.

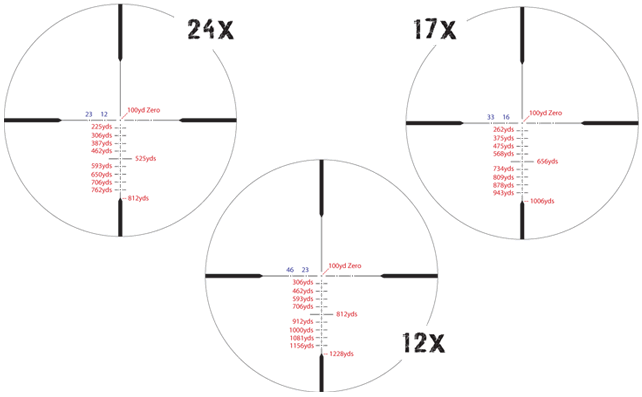

Reticle Examples

Click to Zoom
